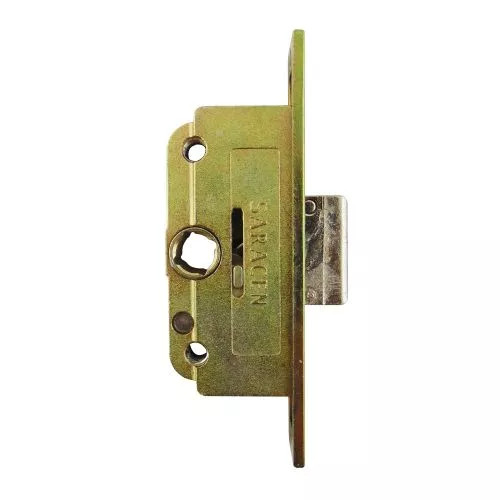

Saracen 1 Window Deadbolt Gearbox - Clip Fit (Bayonet Push and Twist) Rods

The Saracen 1 window deadbolt uses clip in rods which push and twist to secure in place.

The Saracen gearbox accepts a 7mm spindle from a locking or non locking window handle.

Extension pieces are supplied separately.

• Faceplate: 90mm x 15mm
• Body: 61mm x 30mm
• Backset: 22mm
• Bolt throw: 9.5mm
• Rods: Clip Fix (Bayonet Twist and Fix)
• Operation: Lift handle to engage locking points
• Extension pieces: Supplied Separately
• Packaging: Supplied loose
