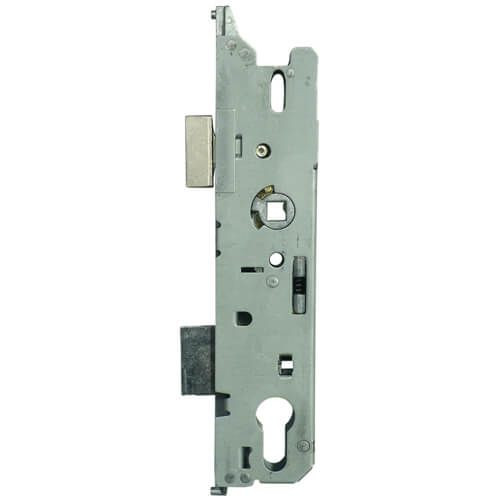

Fuhr Genuine Gearbox

Fuhr genuine gearbox with lift lever function and available with either 25mm, 30mm, 35mm, 40mm, 45mm, or 55mm backset.

Supplied complete with ball bearing, spring, and screw pre-fitted in the rear edge of the case. Important for connecting with an existing multipoint strip; the ball bearing, spring, and screw enable the lift lever functionality of the multipoint lock.

Please note that there has been two variations of latch sizes.
Older version is 28mm high and latest version is 33mm high.
The older version is no longer made but if you are replacing an older version then assuming the latch is not damaged on the original case it can be removed and applied to the new gearbox.

Operation: Lift Lever

Latch reversal: Undo the screw in the side of the lock case adjacent to the latch. Remove the latch, reverse, reinsert and replace the screw.
