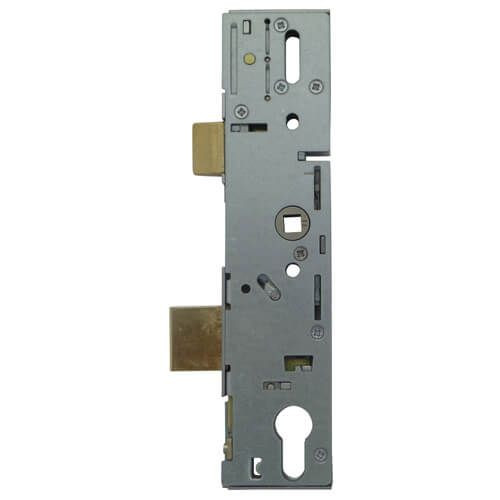

ERA Saracen Genuine Gearbox

ERA Genuine Gearbox Deadbolt Version

Era locks are also rebranded under the names Homesafe - Cego Surelock - Saracen - Spartan - Duraflex - Sapa - Westward

The deadbolt width is 6mm opposed to 5mm on the thin bolt version

Almost all ERA multipoint gearboxes can be interchanged with a deadbolt, hookbolt or Vectis gearbox.

Operation: Lift lever or Split spindle

Latch reversal: Undo the screws in the latch to remove. Reverse and reinsert then replace screws.

Nightlatch split spindle reversal: Remove latch to reveal a small screw. Use a small bladed screw driver to turn the screw 180 degrees then return latch to correct position.

• Case Height: 220mm
• Case Width: Backset + 20mm
• Centres: 92mm
• Backset: 35mm
• Spindle: Split 8mm
• Deadbolt width: 6mm - see part number ERACASE35THIN for 5mm version
• Packaging: Supplied in singles
