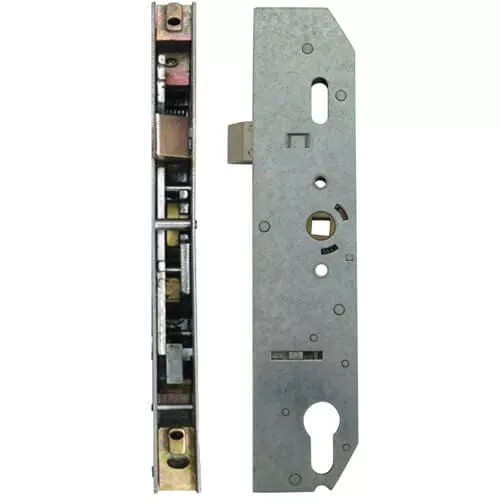

Mila Gearbox Latch Only Version

Product Description

This Mila copy gearbox has a latch only with a single 8mm spindle. Also known as Coldseal and Swiftlocks.

M4 x 10mm self-tapping machine screws need to be used with this lock as screw holes are unthreaded.

The connectors for this lock sit over offset to one side, there are variations that feature central inline connectors, if you are replacing a central inline version adjustments will need to be made, please ask our technical department for advice should you need assistance.

Operation: Lift lever

Latch reversal: Undo the screw in the side of the lock case to remove the latch, reverse, reinsert and replace the screw.

Case Height: 233mm
Case Width: Backset + 20mm
Centres: 92mm
Backset: 35mm
Spindle: Single 8mm
Packaging: Supplied in singles
