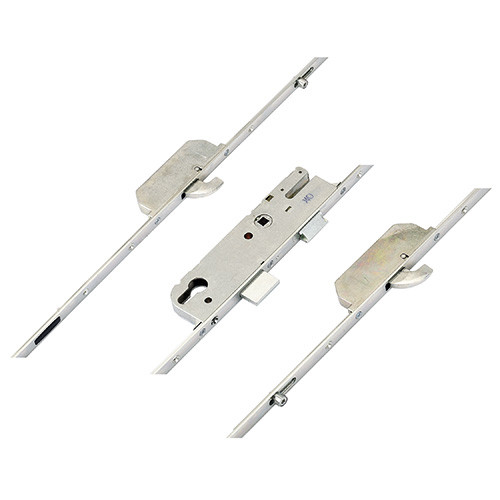

GU Latch, Deadbolt, 2 Hooks and 2 Outboard Rollers - Lift lever (L/L) - Wide version

These GU locks feature rollers outside of the hooks. This version is the wide lock with  lift lever operation but it is also available in split spindle and narrow versions.

• Overall length - 2285mm
• Distance between outer rollers - 1575mm
• Distance between hooks - 1230mm
• Backset - 35mm
• Lever/Lever
• Depending on date of manufacture either:Undo screw or screws in the latch, remove, reverse and reinsertPush a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. Reverse and reinsert
• Remove the latch to reveal a small screw. Use a small bladed screw driver to turn the screw 180 degrees then return latch to the correct position.
• GU locks are now manufactured with a new style centre case
• The main difference between old and new style is the distance between the latch and the deadbolt, this will sometimes cause problems with strike plates
• The other major difference in the height of the lockcase, although this shouldn't cause any real problems when retro fitting
