Atlanta Lever Lever 92mm PZ - 200mm screw centres 3 Hole Fix

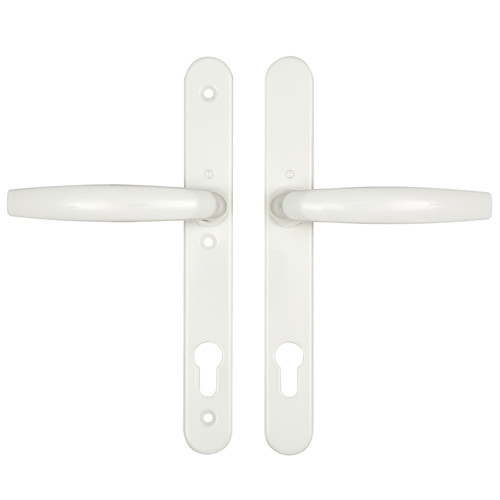

These Hoppe handles from the Atlanta range have unsprung 92pz internal & external levers. With a backplate size of 245mm x 30mm they are available in various finishes.

These handles have 3 fixing screws with the middle fixing 23mm below the lever. The distance between the top and bottom fixing screws is 200mm with the bottom screw positioned 12mm below the euro profile cut-out.

They are supplied as a pair complete with an 8mm square spindle & 2 colour co-ordinated bolt through M5 screws to suit door thickness 56-70mm.

• Unprung
• Length: 245mm
• Width: 30mm
• Centres (PZ): 92mm
• Screw centres: Top to bottom 200mm
• Base of euro to bottom screw: 12mm
• Top screw to spindle: 23mm
• Supplied with spindle & screws
• Supplied as a pair
• Non-handed
• Polybagged
