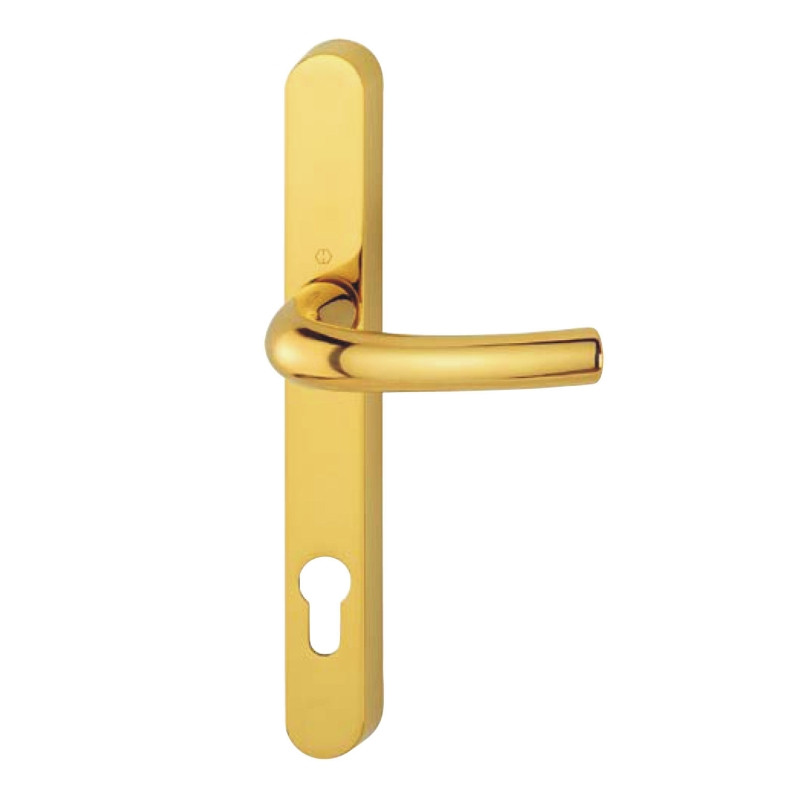

These Hoppe handles from the Atlanta Resista range have sprung 92pz internal & external levers. With a backplate size of 240mm x 30mm they are available in various finishes. The distance between the fixing screws is 122mm with the bottom screw posit

Product Description

These Hoppe handles from the Atlanta Resista range have sprung 92pz internal & external levers. With a backplate size of 240mm x 30mm they are available in various finishes.

The distance between the fixing screws is 122mm with the bottom screw positioned 27mm below the euro profile cut-out.

They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M5 screws to suit door thickness 65-70mm.

10 Yeas Surface Guarantee
Sprung
Type (3831N) backplate
Length: 240mm
Width: 30mm
Centres (PZ): 92mm
Screw centres: 122mm
Base of euro to bottom screw: 27mm
Top screw to spindle: 23mm
Supplied with spindle & screws
Supplied as a pair
Non-handed
