Hoppe handles from the Birmingham range have sprung 92pz internal & external levers. With a backplate size of 245mm x 30mm they are available in various finishes.The distance between the fixing screws is 215mm with the bottom screw positioned 23mm be

Product Description

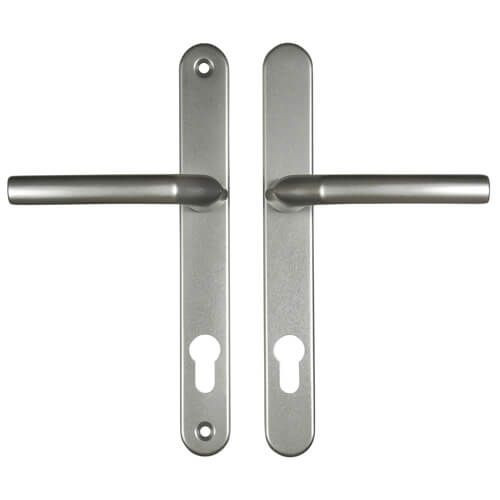

These Hoppe handles from the Birmingham range have sprung 92pz internal & external levers. With a backplate size of 245mm x 30mm they are available in various finishes.The distance between the fixing screws is 215mm with the bottom screw positioned 23mm below the euro profile cut-out.They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M5 screws to suit door thickness 70mm.

Sprung
Type (3810N) backplate
Length: 245mm
Width: 30mm
Centres (PZ): 92mm
Screw centres: 215mm
Base of euro to bottom screw: 23mm
Top screw to spindle: 75mm
Supplied with spindle & screws
Supplied as a pair
Non-handed
Polybagged
