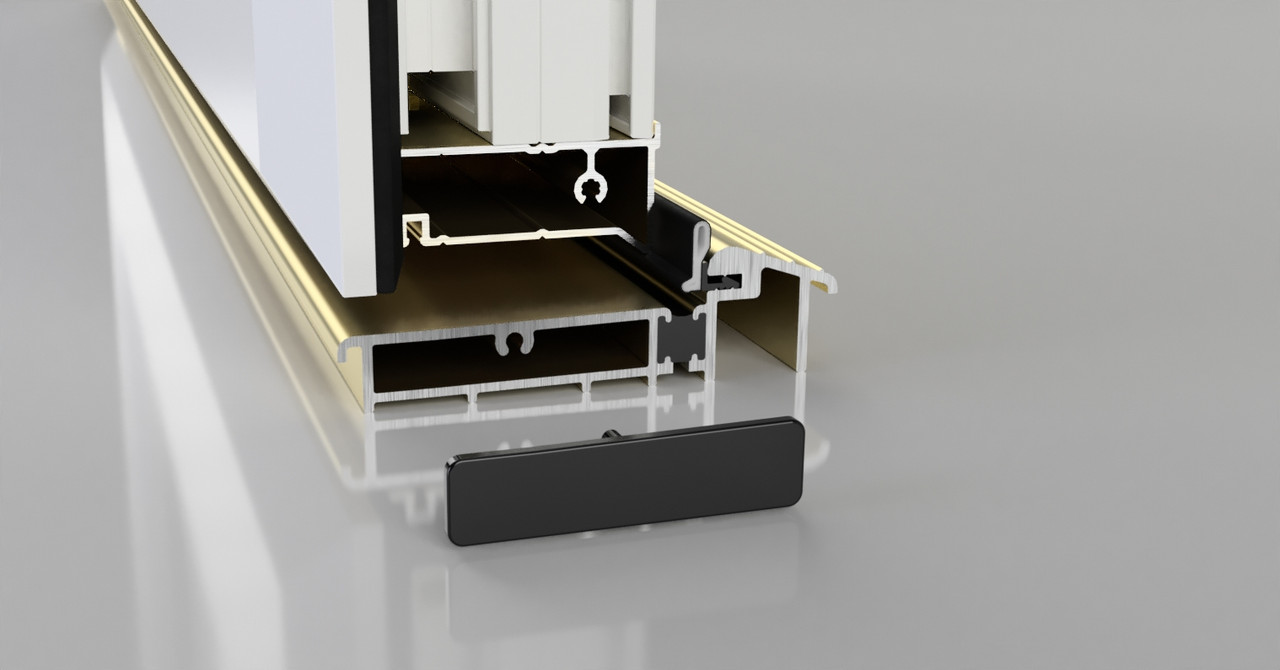

- Proline AM5EX 78 Outward Opening Threshold
)
Product Description
- Can be installed as the fourth side of the door frame or retro fitted
- Seals gaps 16mm-21mm
- Pre-drilled drainage holes
- Thermally broken to meet thermal bridging and insulation requirements, can be used with many different frame and door materials, e.g. wood, PVCu, fibreglass, aluminium, steel and carbon fibre
- Designed to fit directly onto level thresholds
- Ideal for use with carpeted floors
- Non-slip surface ensures a safe grip in wet conditions
- Complies with Part M of the building regulations (see section 0.23) when used in conjunction with the Proline Low Ramp– 04CP224 Proline Low Ramp
- Supplied with end caps to close off the ends of the front channel- End Caps
- Optional rubber infill section that fits into the sill and allows the door frame/sidelight to be fitted on top of the sill without milling the bottom of the frame to the sill profile- 20CP242 AM5Ex Infill Block
- Optional infill bars available to fill the bottom sash rebate on UPVC doors- PVC Door Infills
- Optional clip-in internal transition ramp also allows use with tiled and wooden floors- 04CP092 Eco/ AM5Ex Ramp
- Adjustable locking keeps available for double doors to suit your shoot bolt position- AM5Ex Adjustable Locking Keeps
- Plastic shootbolt catcher available for double doors- Locking Keep Plugs
- Bespoke nylon connector blocks, which match the door frame and threshold profiles are available to avoid for the need for end milling- AM5Ex Frame Connectors
- 2000mm Length
- Suitable for outward opening doors
