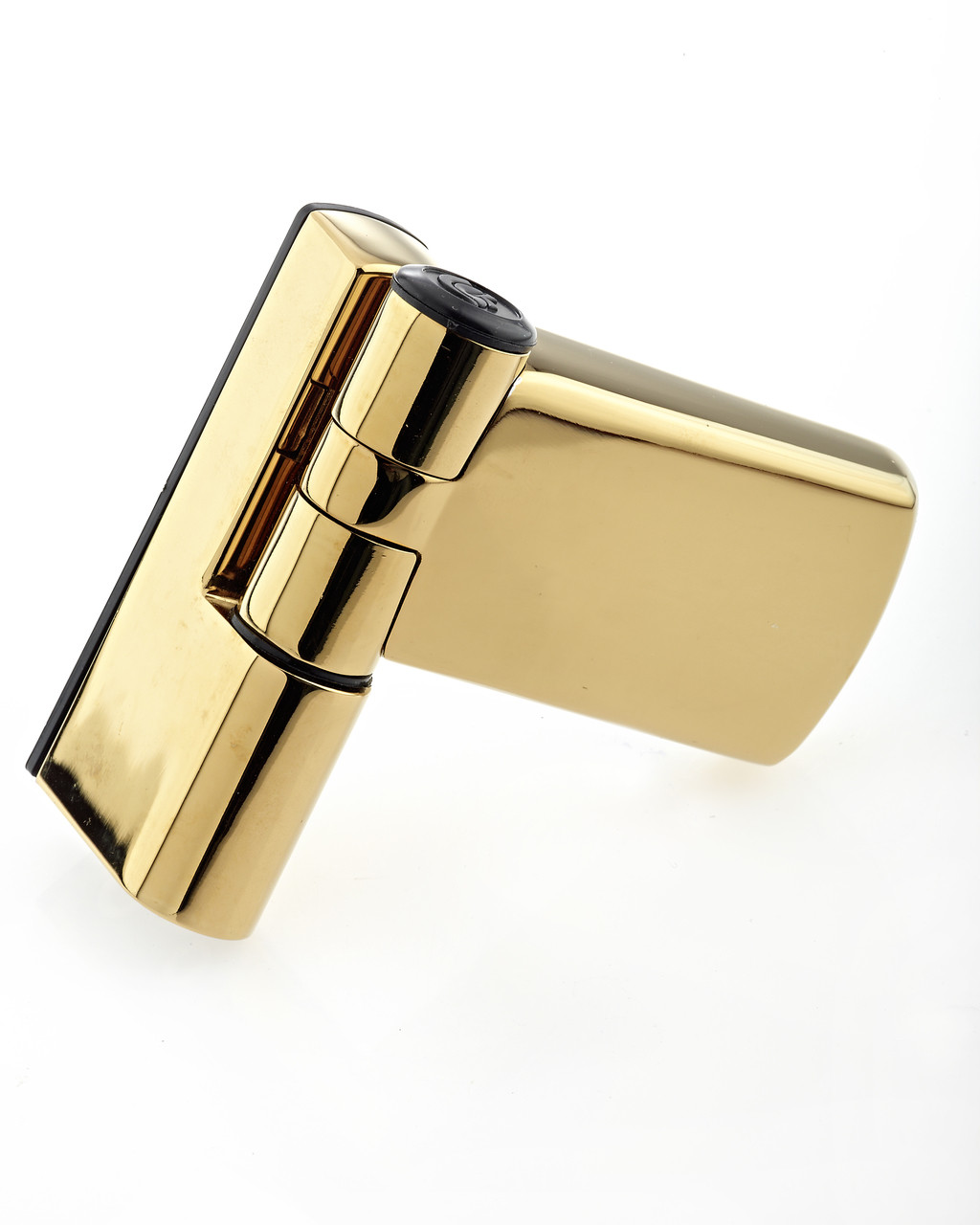

Patriot Plus Door Hinge

£7.97
Availability:
Ships within 24 hours
Quantity:

Product Description



High security just got easier with the Patriot Plus door hinge. Offering a slim, unobtrusive design, the hinge provides improved clearance of the plaster line and finishing.

Easy, accurate and independent 3D adjustment means no visible gaps can be seen when adjusting height resulting in clean aesthetics and increased stability. Fitting time is also extremely simple as the hinge is supplied complete, pre-assembled and ready to fit, dramatically speeding up the installation process.

The non-handed door hinge provides PAS 24 security (when used as part of a tested door assembly) with a patented anti-lift feature and additional location pins to reduce twist.

Tested for corrosion to BS EN 1670 to Grade 4 for plated finishes and Grade 5 for painted finishes.



  • Full 3D adjustment
  • Supplied pre-assembled, ready to fit
  • Patented anti-lift feature
  • Additional location pins to reduce lift
  • Slim and unobtrusive appearance
  • PAS 24 accredited as part of a door assembly
  • Non handed
  • Available in White, Black, Brown, Chrome, PVD Gold, Oak, Satin Silver and Cream RAL9001

Material Specification

  • Zinc alloy
  • Stainless Steel - Grade 430
  • Plastic - GF, Nylon, UV Stabilised ABS and Acetal

Testing and Accreditation

  • Conforms to EN1191 - tested to 100,000 cycles
  • Corrosion tested to Grade 4
  • PAS 24 accredited as part of a complete door assembly

Nominal Step Heights and Shims

  • Available in 3 heights: 16mm, 19mm and 22mm
  • Shims available: 1mm, 2mm

Adjustment & Weight Load

  • Height: +8mm
  • Compression: +/- 1.5mm
  • Lateral: +/- 6.0mm
  • Maximum weight carrying capacity, 3 hinges: 80kg



Product Reviews

Write Review

  1. Great Security Option 5 Star Review

    Posted by on 21st May 2021

    I brought these hinges as a direct replacement for ones I had to cut off due to a door malfunction, once installed the only way I could remove these was with an angle grinder as there is no way of accessing the mounting screws for either the door or frame if the door won’t open, good adjustment range when fitted to ensure door operation is smooth and precise
