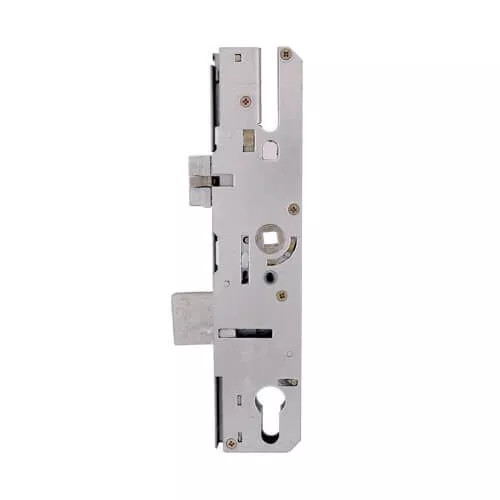

Maco GTS Copy Gearbox

Maco GTS copy gearbox with lift lever function and available in a 35mm backset.

Operation: Lift Lever

Latch reversal: Push up serrated button on the side of the case, remove the latch, reverse and reinsert.

• Case Height: 228mm
• Case Width: Backset + 17mm
• Centres: 92mm
• Backset: 35mm
• 28mm and 45mm backsets are now obsolete
• Spindle: Single 8mm
• Packaging: Supplied in singles
