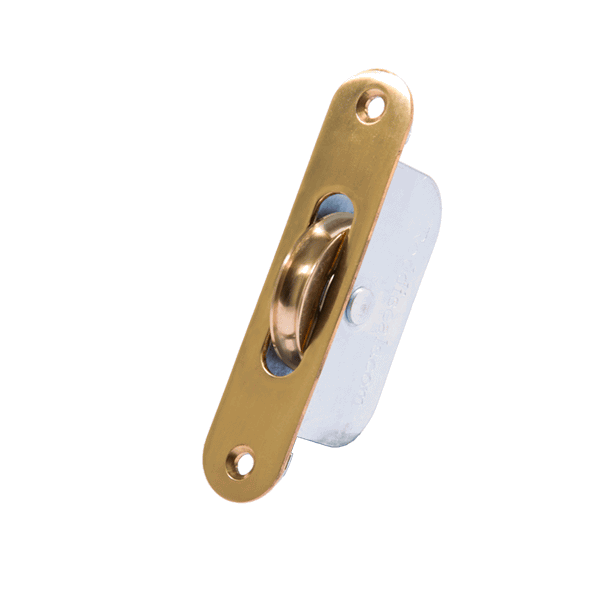

Curved Wheel Sash Pulley Radius

Our standard curved wheel sash pulley with ball bearing mechanism is very versatile, recommended for use in all sash windows (up to 75kg), in a choice of square or radius ends. Available in 9 different finishes across the 2 styles, these pulleys balance both quality and cost to suit most requirements. Additionally, both style ends are now manufactured from a 316 grade stainless steel in a modern and attractive polished finish. The stainless steel pulleys are highly corrosion resistant and ideal for use in coastal regions and for use with Accoya wood.

• Ball bearing pulleys
• Recommended for use in most sash windows
• Max. sash weight: 75kg
• Face plate: 1 x 4 ⅝” / 25.4 x 118mm
• Wheel diameter: 1 ¾” / 44mm
• Recess: 39mm
• Use with: Cord
• Wheel type: Curved
• Face plates and wheels are manufactured from brass as standard with a strong mild steel wheel holder.
